The DLPC3430CZVBR is a digital display controller from Texas Instruments, designed to interface with the DLP2010 (.2″ WVGA) Digital Micromirror Device (DMD). It is a key component in the DLP® Pico™ chipset, enabling compact and low-power projection solutions.

Key Specifications

• Supported DMD: DLP2010 (0.2″ WVGA)

• Input Resolution: Up to 720p, scaled to WVGA output

• Frame Rate: Up to 240 Hz

• Input Interfaces:

  • 24-bit parallel RGB

  • BT.656

  • MIPI® DSI Type 3 (1–4 lanes, up to 470 Mbps per lane)

• Pixel Clock: Up to 155 MHz

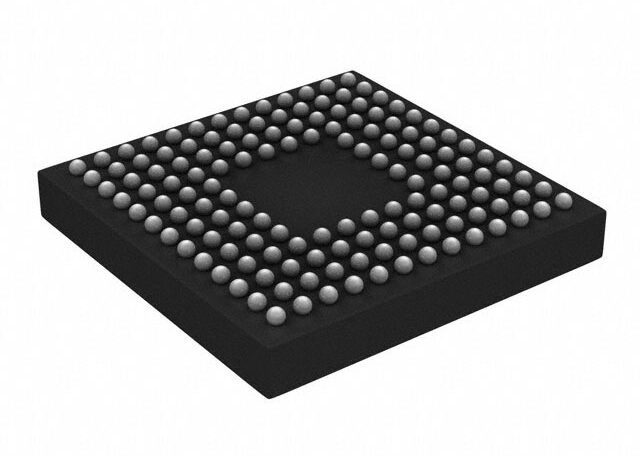

• Package: 176-ball NFBGA (7 mm × 7 mm)

• Operating Temperature: -30°C to +85°C

• Power Supply: 1.1 V

Features

• Image Processing:

  • IntelliBright™ suite for enhanced brightness and contrast

  • Content Adaptive Illumination Control (CAIC)

  • Local Area Brightness Boost (LABB)

  • 1D keystone correction

  • Color space conversion and programmable degamma

• System Integration:

  • Embedded frame memory (eDRAM)

  • I²C control interface

  • Programmable splash screens

  • Programmable LED current control

  • Auto DMD parking at power down

• Power Management:

  • Active power management processing

  • Compatible with DLPA2000, DLPA2005, or DLPA3000 PMICs and LED drivers

Applications

• Mobile projectors

• Smart displays

• Augmented reality glasses

• Smart home displays

• Pico projectors

For detailed technical information, refer to the
